The low weight and well-balanced saw body makes it very easy to work with.

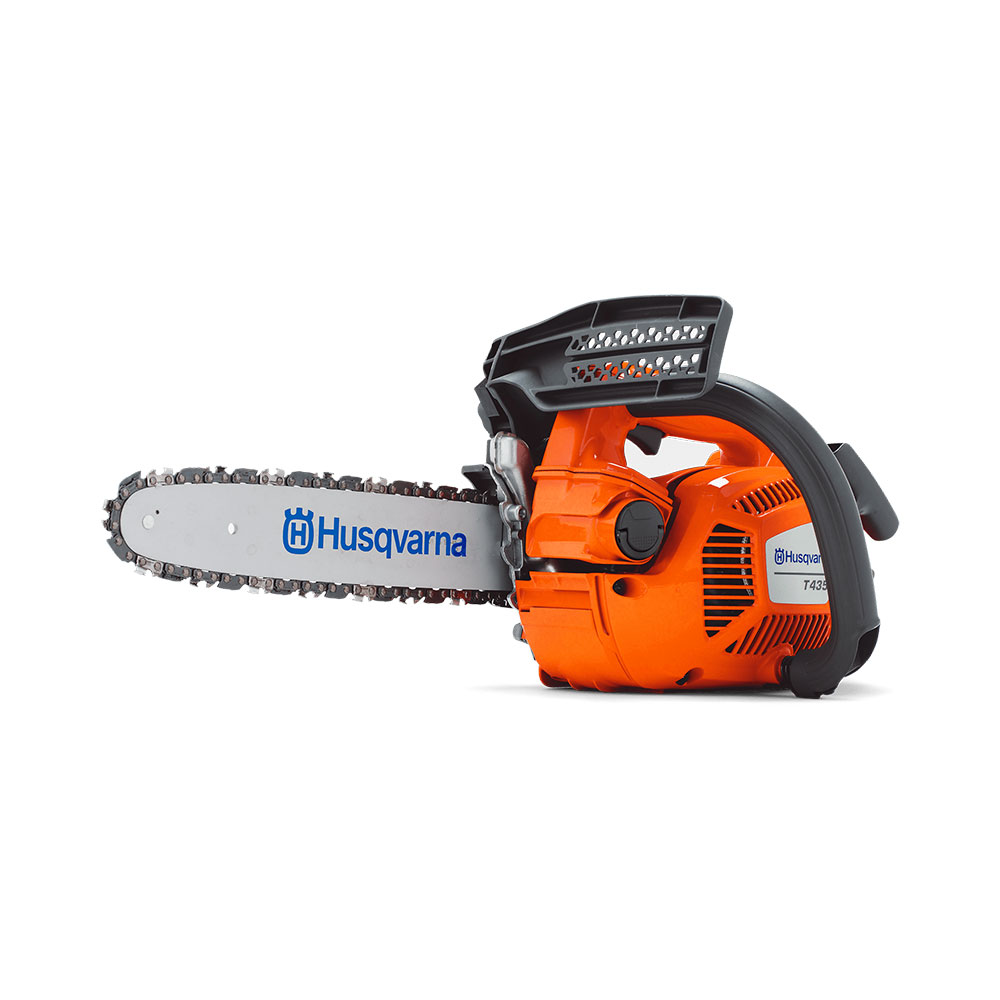

Husqvarna T435 14″ Gas-Powered Chainsaw
Style # : 966997234
$342.01
Mid-sized X-Torq® tree care saw. It´s a lightweight powerful chainsaw for pruning in parks as well as vineyards and fruit orchards.
Details
Specifications
| Engine |
12″ SN 3/8 mini” 1,3 mm H37
SKU: 966 99 72‑03
|
12″ Bar, .3/8″ Pitch, .050″ Gauge
SKU: 966 99 72‑32
|
14″ Bar, .3/8″ Pitch, .050″ Gauge
SKU: 966 99 72‑34
|
16″ Bar, .3/8″ Pitch, .050″ Gauge
SKU: 966 99 72‑36
|
| Chain speed at max power | 62.3 fts | 62.3 fts | 62.3 fts | 62.3 fts |
|---|---|---|---|---|
| Cylinder displacement | 35.2 cm³ | 35.2 cm³ | 35.2 cm³ | 35.2 cm³ |
|
Output shaft power1
|
2.01 hp | 2.01 hp | 2.01 hp | 2.01 hp |
| Torque, max. | 1.57 Nm | 1.57 Nm | 1.57 Nm | 1.57 Nm |
| Torque, max. at rpm | 7,500 rpm | 7,500 rpm | 7,500 rpm | 7,500 rpm |
| Clutch engagement speed (±120) | 4,700 rpm | 4,700 rpm | 4,700 rpm | 4,700 rpm |
| Electrode gap | 0.03 in | 0.03 in | 0.03 in | 0.03 in |
| Idling speed | 2,900 rpm | 2,900 rpm | 2,900 rpm | 2,900 rpm |
| Ignition module air gap | 0.02 in | 0.02 in | 0.02 in | 0.02 in |
| Maximum power speed | 10,000 rpm | 10,000 rpm | 10,000 rpm | 10,000 rpm |
| Oil pump capacity, max | 9 ml/min | 9 ml/min | 9 ml/min | 9 ml/min |
| Oil pump capacity, min | 3 ml/min | 3 ml/min | 3 ml/min | 3 ml/min |
| Oil pump type | Automatic | Automatic | Automatic | Automatic |
| Spark Plug | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H |
| Equipment | ||||
| Recommended bar length, min | 12 in | 12 in | 12 in | 12 in |
| Pitch | 3/8″ mini | 3/8″ mini | 3/8″ mini | 3/8″ mini |
| Recommended bar length, max | 14 in | 14 in | 14 in | 14 in |
| Chain type | H37 | H37 | H37 | |
| Bar length | 30 cm | 30 cm | 35 cm | 40 cm |
| Bar length (inch) | 12 in | 12 in | 14 in | 16 in |
| Sprocket type | Spur 6 | Spur 6 | Spur 6 | Spur 6 |
| Gauge | .050″ | .050″ | .050″ | .050″ |
| Dimensions | ||||
| Weight (excl. cutting equipment) | 7.5 lbs | 7.5 lbs | 7.5 lbs | 7.5 lbs |
| Sound and noise | ||||
| Sound pressure level at operators ear | 103 dB(A) | 103 dB(A) | 103 dB(A) | 103 dB(A) |
| Sound power level, guaranteed (LWA) | 114 dB(A) | 114 dB(A) | 114 dB(A) | 114 dB(A) |
| Sound power level, measured | 112 dB(A) | 112 dB(A) | 112 dB(A) | 112 dB(A) |
| Vibration | ||||
| Equivalent vibration level (ahv, eq) rear handle | 3.9 m/s² | 3.9 m/s² | 3.9 m/s² | 3.9 m/s² |
| Equivalent vibration level (ahv, eq) front handle | 3.6 m/s² | 3.6 m/s² | 3.6 m/s² | 3.6 m/s² |
| Lubricant | ||||
| Oil tank volume | 0.36 US pint | 0.36 US pint | 0.36 US pint | 0.36 US pint |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 |
| Emission | ||||
|
Exhaust emissions (COâ‚‚ EU V)2
|
860 g/kWh | 860 g/kWh | 860 g/kWh | 860 g/kWh |
